40-conductor connector
Price: $2.50

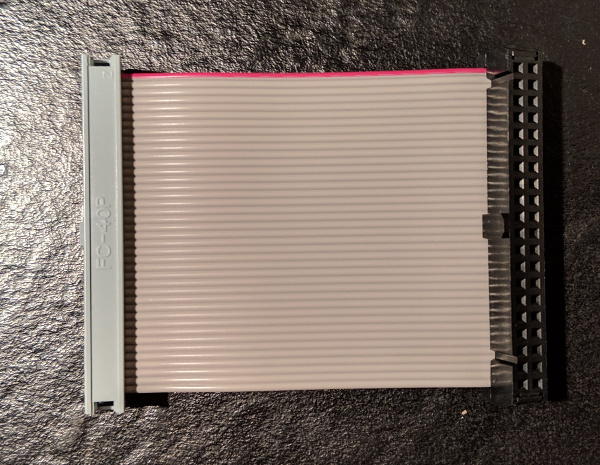

This ribbon cable connector allows the user to connect the 8-bit processor to the system connector on the Single-board Z80 kit computer. The connector has the two connectors on the opposite sides of the cable:

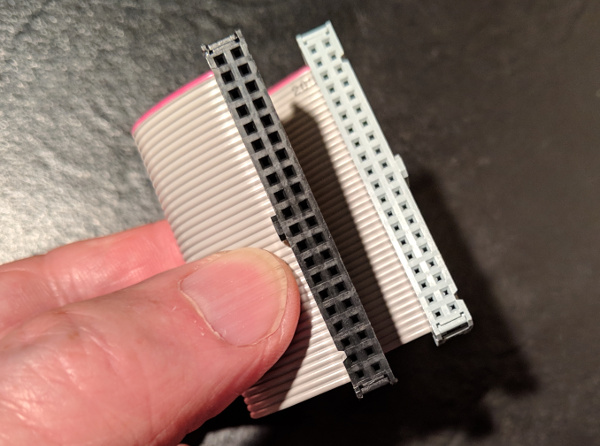

header connectors on opposite sides of cable

This arrangement allows simple connection of the 8-bit processor to the Single-board Z80 computer when they are stacked. Here is photo of this cable connecting the processor main board to the Single-board computer:

ribbon cable connecting main and system boards
