Register Display Kit

register display kit
Circuit board only: $18.60
Full kit: $46.00
Full kit, assembled and tested: $76.00

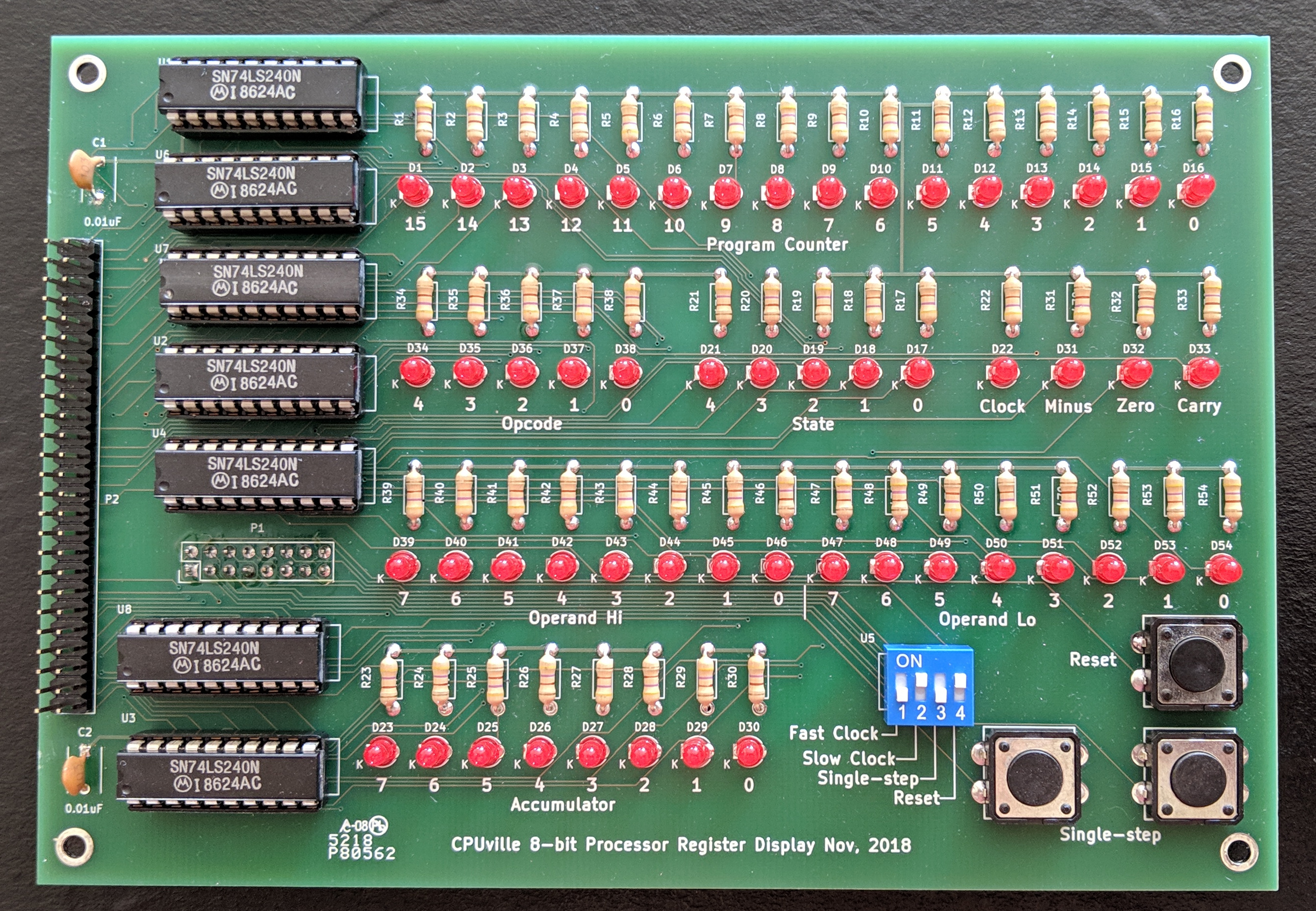

This is a register display for the 8-bit processor. It allows the user to see the details of how the processor works. The register display has switches that connect to the oscillator circuits on the processor control board so the user can control the clock speed. It includes a single-step clock to examine the processor actions one clock tick at a time. This video shows the register display in action. The full kit includes a 50-conductor connector to attach the display to 8-bit processor. For details, please look at the register display kit instructions.
