Z80 socket adapter kit

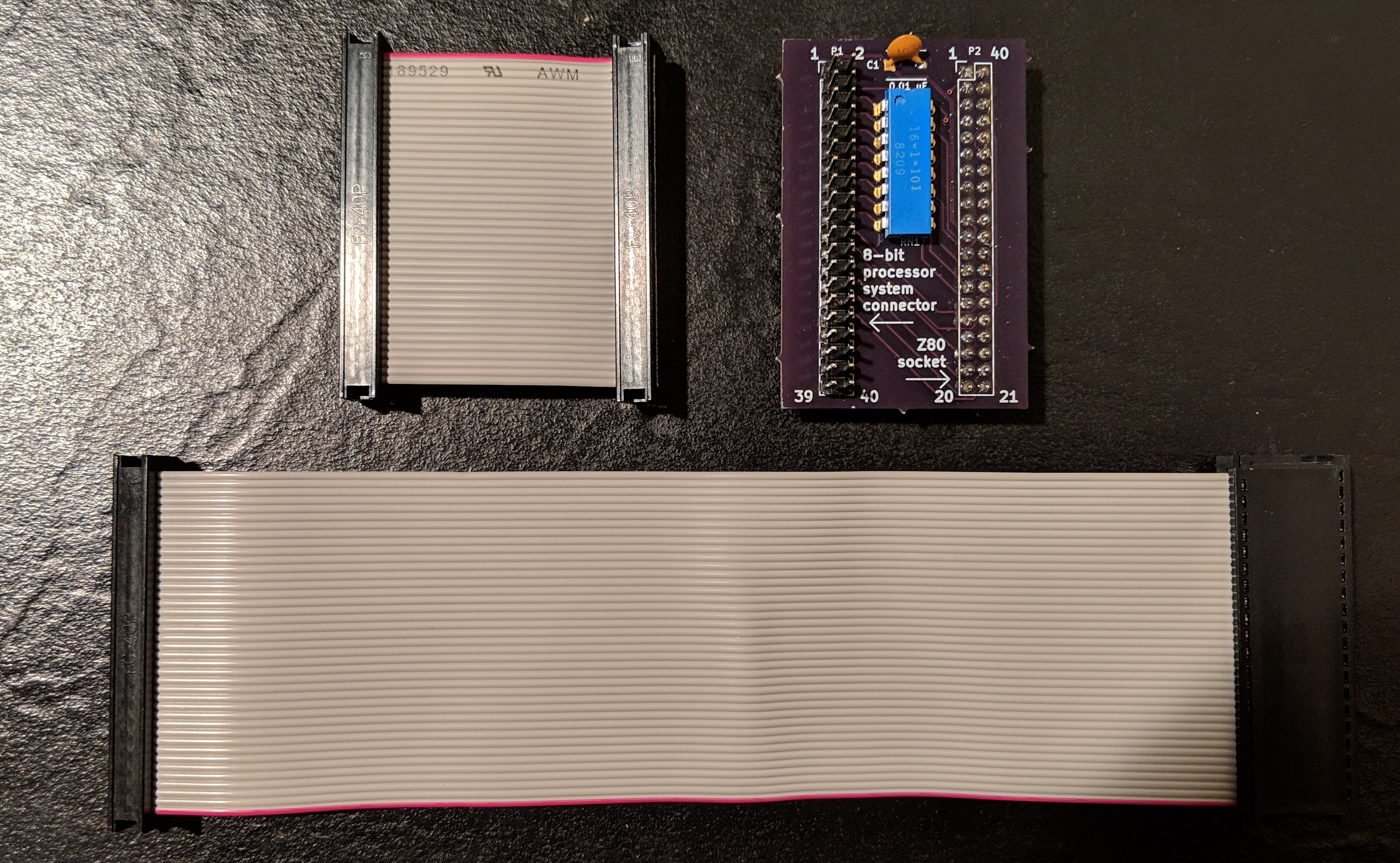

Z80 socket adapter and cables
Circuit board only: $4.20
Full kit: $12.00
Full kit, assembled and tested: $22.00

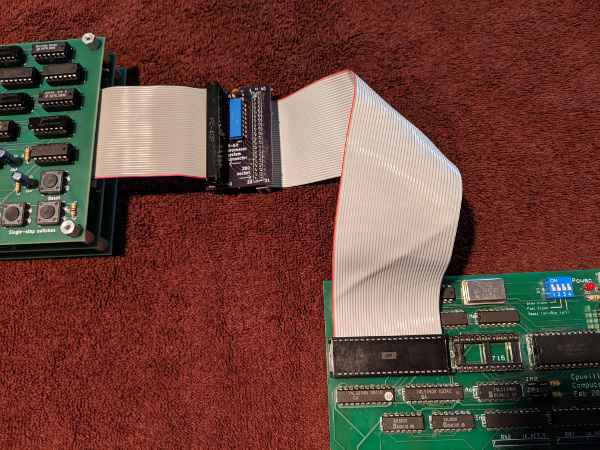

This adapter with the accompanying cables allows the user to connect the 8-bit processor to the Z80 socket on the CPUville Original Z80 kit computer. Here is photo of this adapter connecting the processor and the Original computer:

Z80 socket adapter connecting processor to computer board

The adapter comes with pre-assembled and tested cables. For more information see the Z80 socket adapter kit instructions
